Description

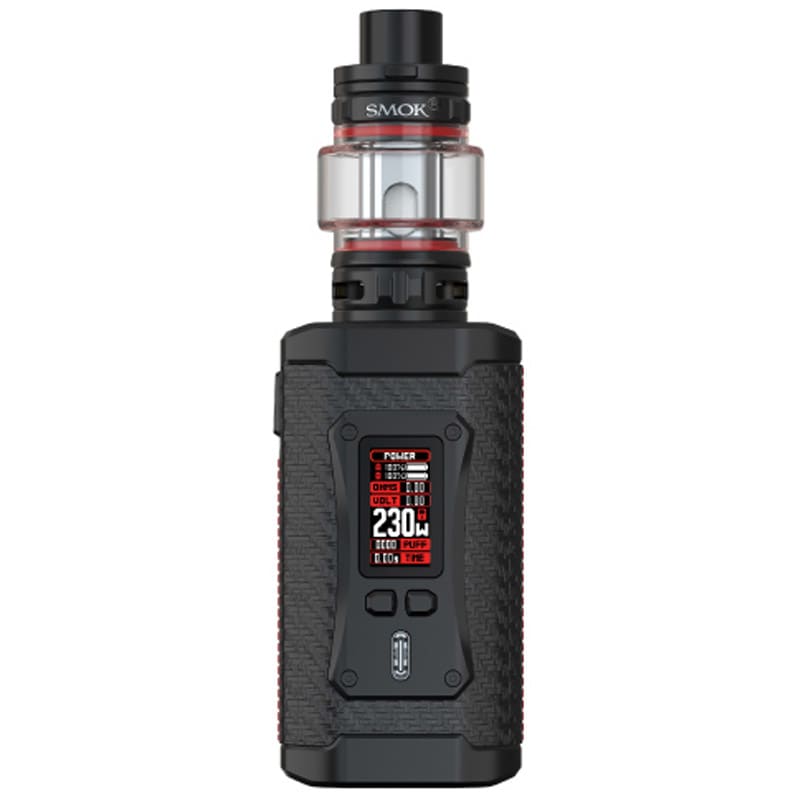

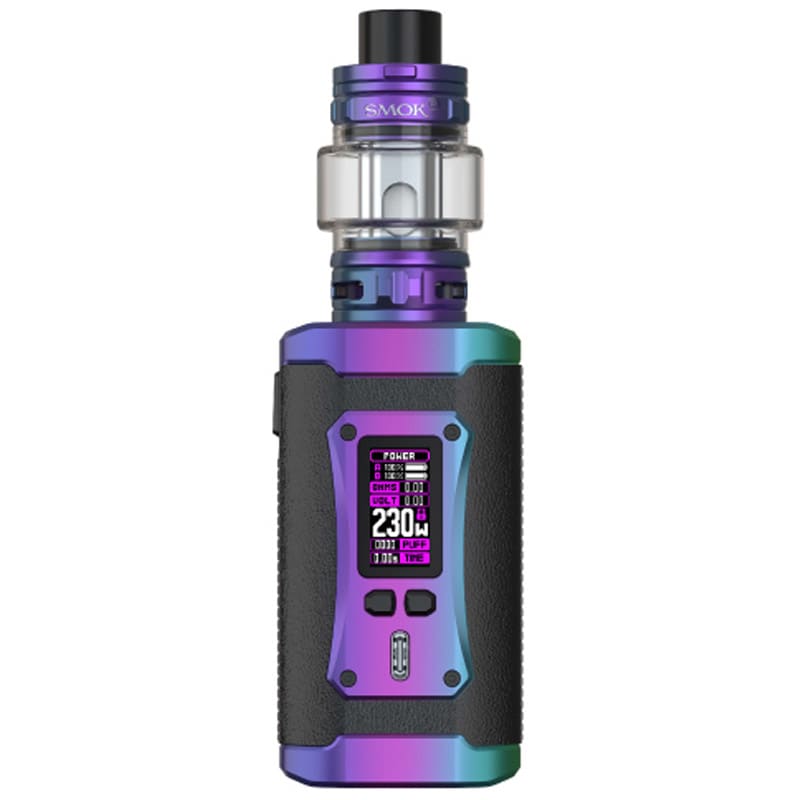

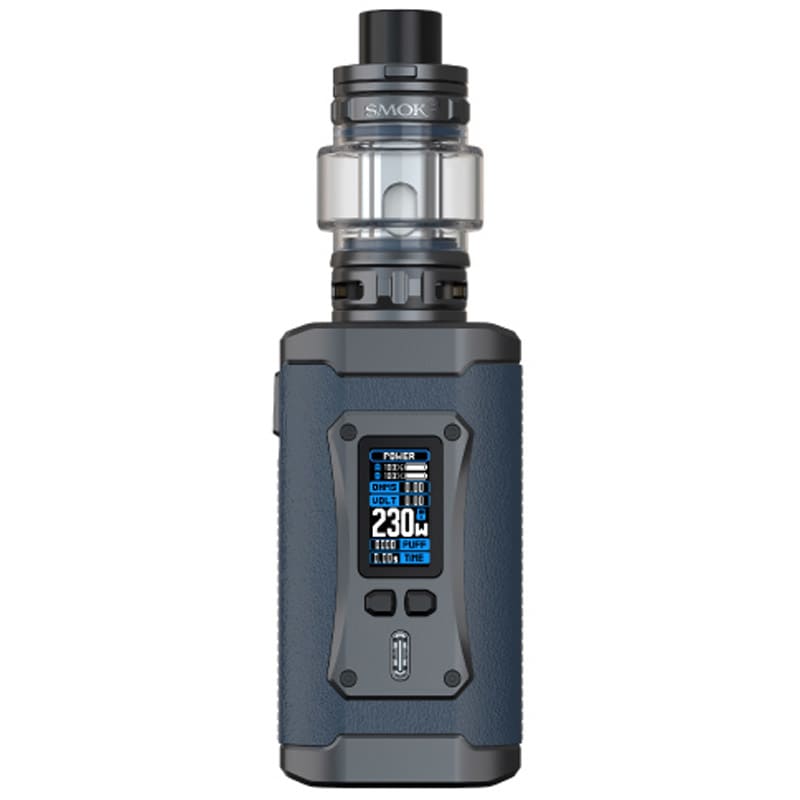

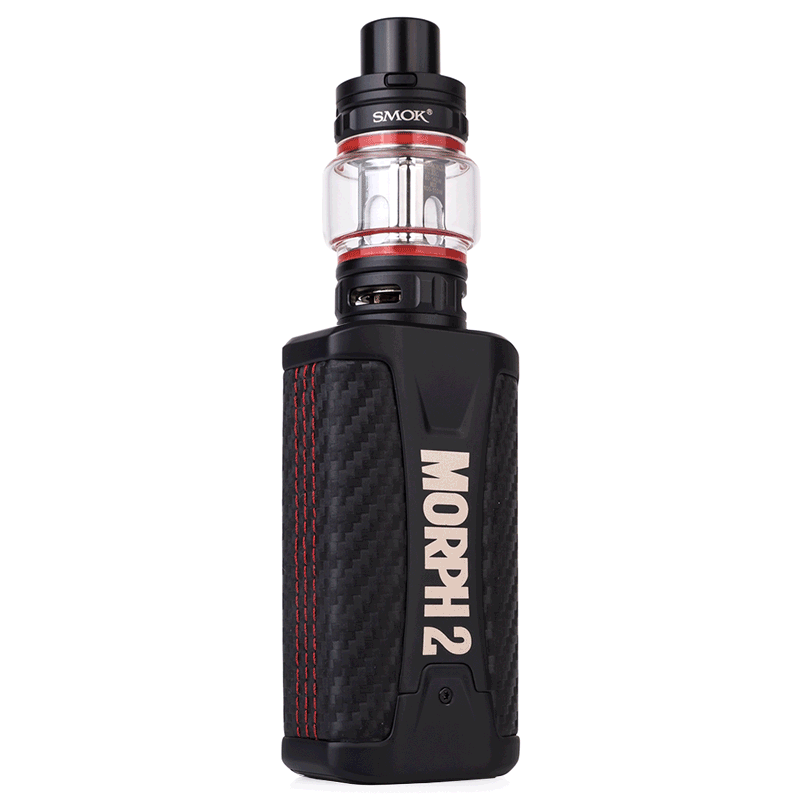

This SMOK Morph 2 Kit combines the sleek, stylish, and powerful mod with the TFV18 sub-ohm tank (CRC), creating an ideal device for enjoying large flavourful clouds of vapor with freebase e-liquids, in all types of weather.
The SMOK Arcfox has a durable alloy frame accented by a beautiful leather wrap, and features IP67 Waterproof, IP67 Dustproof, and Shockproof structural protections. The bottom battery door securely holds dual 18650 battery (not included) in place, delivering 5 - 230W of power with support for variable wattage and temperature control output, to atomizers in the resistance range of 0.1 - 2.5Ω (VW) / 0.05 - 2.0Ω (TC). The 0.96” multi-color TFT screen clearly displays the remaining battery power level, and settings which can be easily adjusted using the lower +/- buttons, and responsive firing button. The USB C port supports charging the cells at 2A, but an external charger is recommended to extend battery life and eliminate the need for downtime (with extra cells).

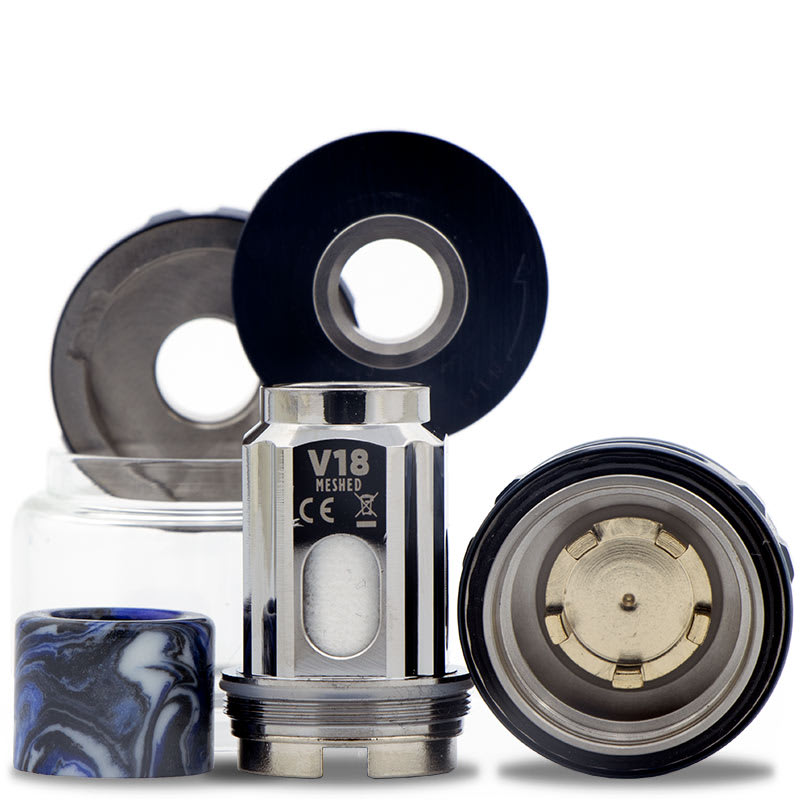

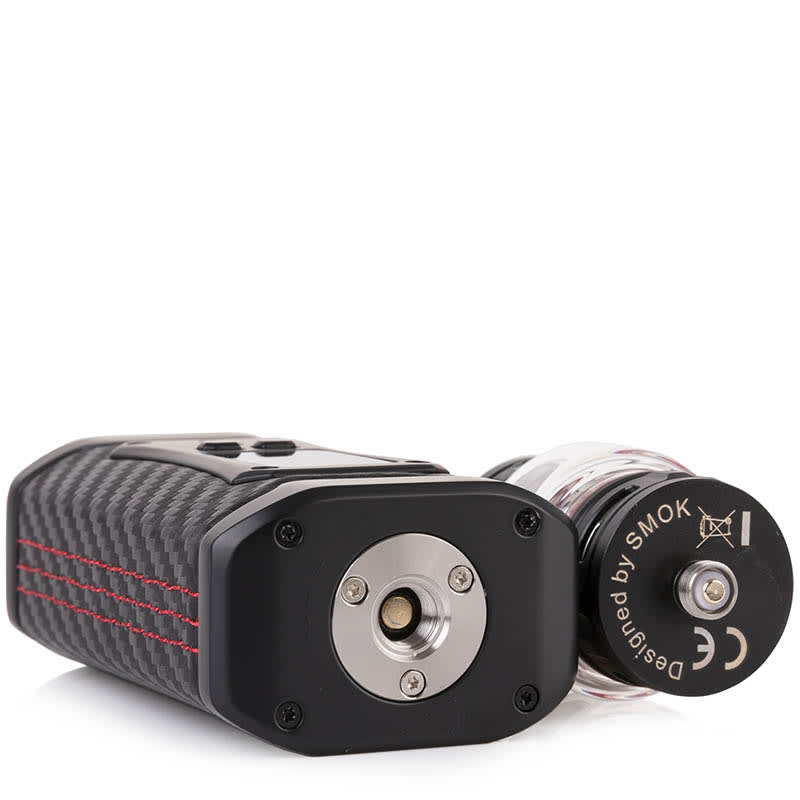

The TFV18 by SMOK is a Child Resistant Certified vape tank designed for direct to lung vaping with large clouds of vapor. The TFV18 has a swiveling fill lid with secure press button lock topped by a unique resin 16mm press fit drip tip with a wide bore, and a wide top fill port with an automatic silicone plug. The TFV18 tank features optimized power transfer facilitated by an increased (5x vs usual 3) number of copper (vs stainless steel) braces in the 26mm wide base, and larger triple adjustable bottom airflow channels for reduced direct to lung draw resistance.
Two TFV18 atomizers are included with the tank, and the size affects the tank capacity. The 31.6mm wide bubble tank has capacity for 7.5mL of e-liquid with the pre-installed TFV18 single mesh 0.33Ω (80 - 140W / 100 - 110W) coil, and 6.5mL when the TFV18 dual mesh 0.15Ω (80 - 140W / 100 - 110W) coil included with the tank is used. The TFV18 tank is also compatible with the TFV16 series of atomizers, and TFV18 coils are cross compatible with the TFV16 King tank.

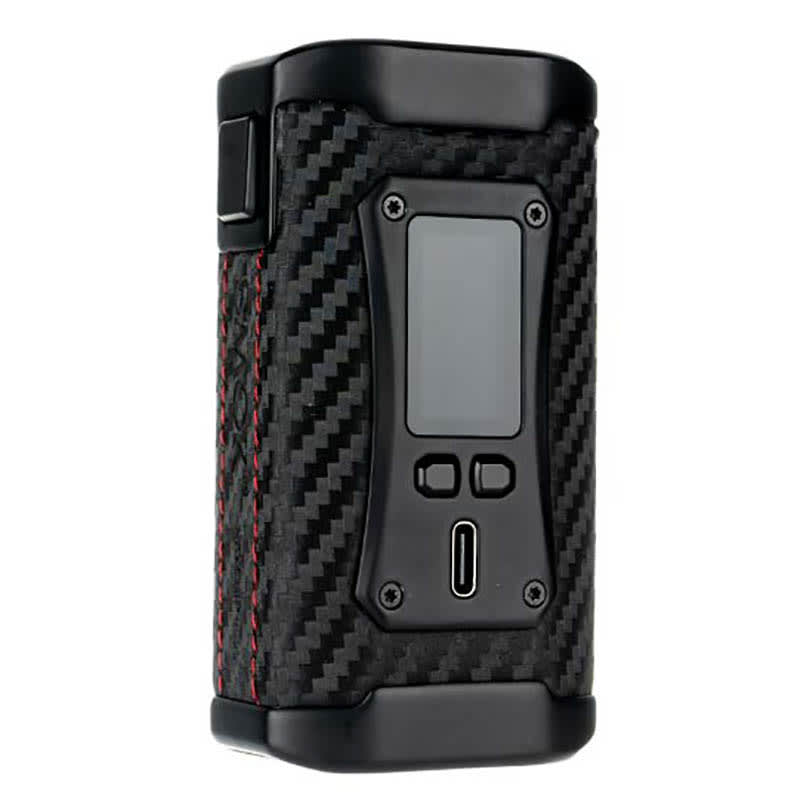

Morph 2 Mod Features:
- Dimensions: 88 x 47.5 x 31.7mm
- Weight: 133.5g
- Battery Capacity: Dual 18650 Cells (not included)
- Output Wattage: 5 - 230W
- Standby Current: <300ua
- Input Voltage: 6.4 - 8.4V
- Output Voltage: 1.2 - 8.2V
- Charging Voltage: 5V */- 0.2V
- Charging Current: 2.0A
- Resistance Range: 0.1 - 2.5Ω (VW) / 0.05 - 2.0Ω (TC)
- Temperature Range: 200 - 600°F / 100 - 315°C
- Firing Response: 0.0001s
- 0.96” Multicolor TFT Display
- Leather Inlay Panel
- USB C Charging Port
- Bottom Battery Door
- Multiple Security & Safety Features:
- 8-second cut off
- Intelligent atomizer recognition
- Overheating protection
- Short circuit protection
- Low-battery warning
- Reverse polarity protection
- Over-discharge protection
TFV18 Tank Features:
- Dimensions: 66.3mm x 26mm base / 31.6mm tank
- Weight: 93.3
- Tank Capacity: 7.5mL with 0.33Ω Coil
- Limited to 6.5mL with larger 0.15Ω coil
- Child Resistant Certified
- Press Lock Rotating Fill Lid
- Automatic Silicone Fill Port Block
- Wide Port Resin Drip Tip: 16mm Press Fit
- Improved Power Transfer to Coil
- Increased number of copper braces
- Triple Adjustable Airflow Channels
- TFV18 Coil Series

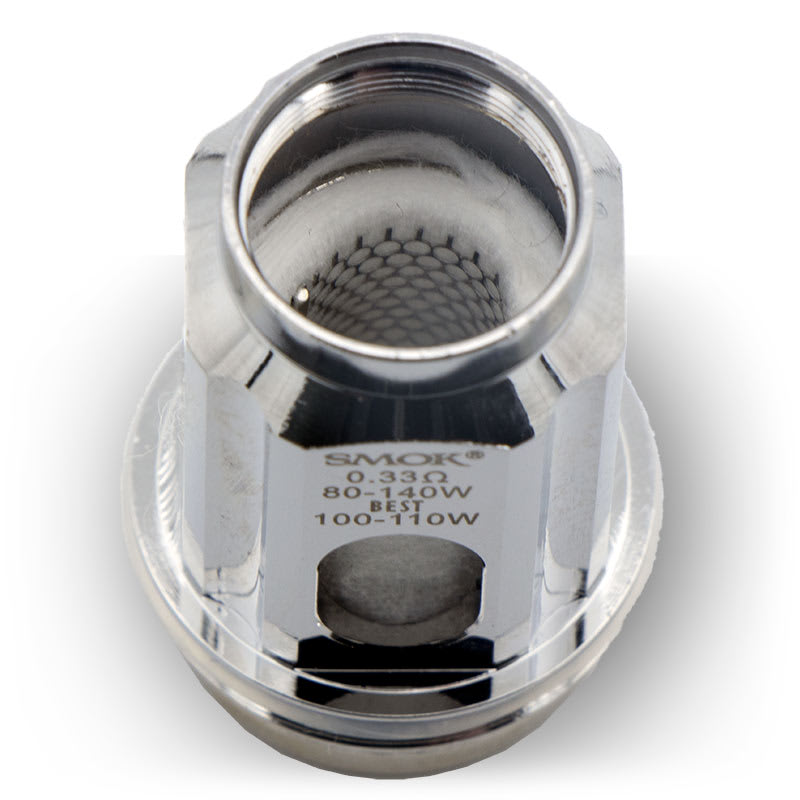

- Single mesh 0.33Ω: 80 - 140W (Best: 100 - 110W)
- Dual mesh 0.15Ω: 80 - 140W (Best: 100 - 110W)
- RBA
- Cross compatible with TFV16
- Triple Bottom Adjustable Airflow Channels
Morph 2 Kit Includes:
- Morph 2 Mod
- TFV18 Tank
- TFV18 Meshed 0.33 Coil (preinstalled)
- TFV18 Dual Meshed 0.15 Coil
- Replacement Bubble Tank
- USB C Cable
- User Manual
